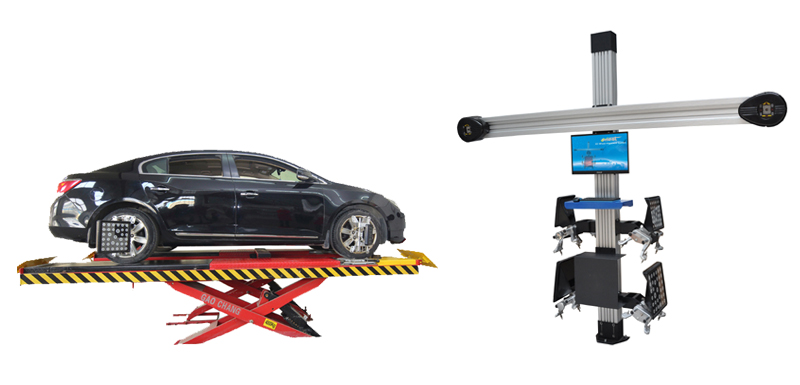

3D-S IMAGING WHEEL ALIGNMENT SYSTEM
More Fast, More Accurate and Good Repeatability !
Features:
*Real 3D Camera Measuring Technology
*Just One Time Cablibration in Factory
*Humanized Design of Alignment Software with Easy-to-use Operation
*Brand Dell Computer with Win 7 System / Win10 System
*English Voice Navigation for Operation
*Multi-language Alignment Software Interface
*More than 20,000 Car models Specificaiton Worldwide with Free Update
*Extra Camera for Lift Parking Aid System
*Two Wheel Quick Alignment Function
*Without cabinet
Main Technical Parameters
| Projects | Accuracy | Range |
| Display Accuracy | 0.01mm / 0.01° | / |
| SAI | ±0.05° | ±25° |
| Camber | ±0.02° | ±10° |
| Toe | ±0.02° | ±20° |
| Caster | ±0.05° | ±20° |
| Thrust Angle | ±0.02° | ±10° |
| Back Angle | ±0.01° | ±10° |
| Total Toe | ±0.02° | ±20° |
| Power Request: 100-240V, 50/60HZ, Single Phase | Installation Type: 4 Post Car Lift, Scissor Lift or Pit Type |
"SMART" Cameras + "EASY" Software
Data Acquisiton using high resolution 3D imaging cameras
*No Electronics on Wheels
*Unique design for alignment only ,not industrial camera
*Background remvoing function exclude strong or dark light effect
*Super long lifetime of LED strobe,camera can still work even half of LED damage

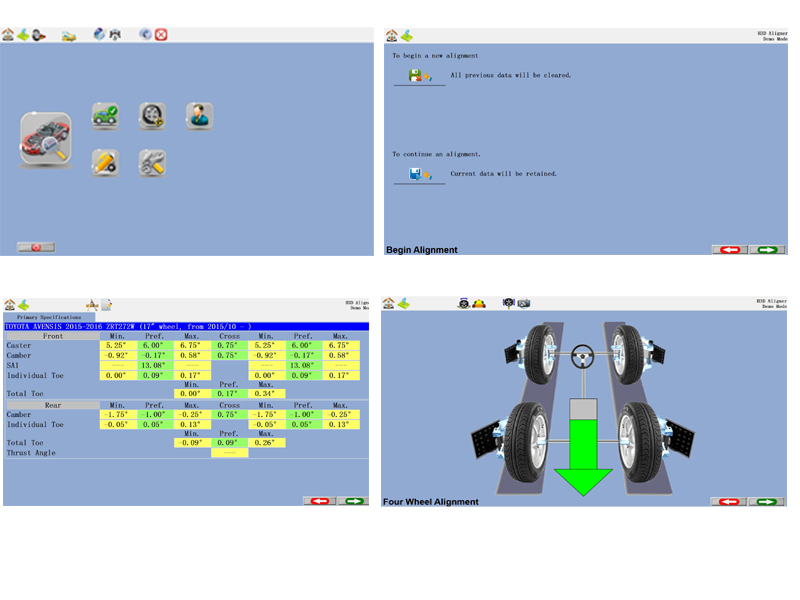

EASY-TO-USE WHEEL ALIGNMENT SOFTWARE
Simple steps alignment: Save Time and Increase Revenue
STANDARD ACCESSORIES

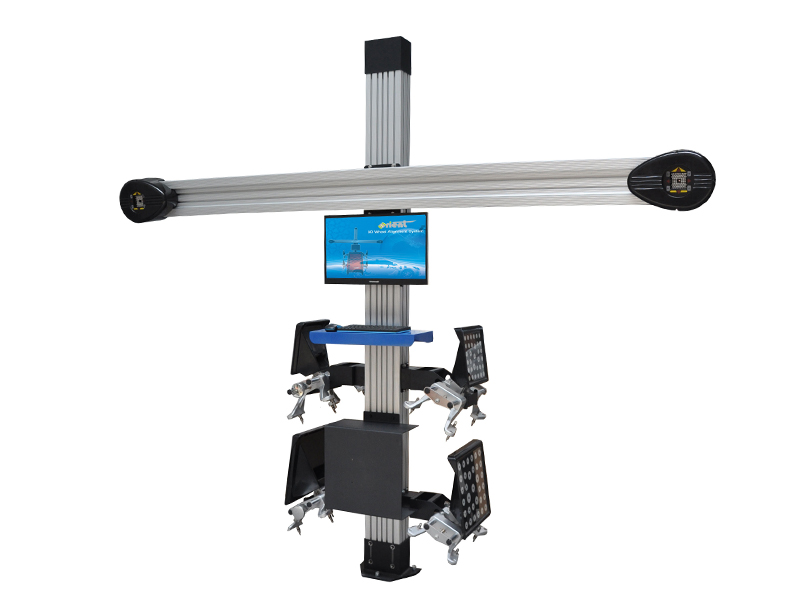

1- Camera Beam Assembly 1PC
(including 2 cameras, Aluminum beam,camera cover, HUB board, USB and Power cables)
2- Camera Beam Support 1PC

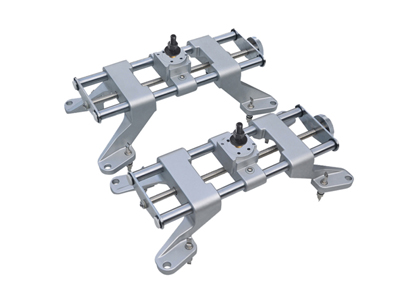

3- Targets & Clamps 1SET
(including 2 pcs of front targets and clamps, 2 pcs of rear targets and clampls, 16 pcs jigs)
4- Wheel Steering Lock 1PC
5- Brake Lock 1PC
6- Target Protecting Strings 4PCS
7- Wheel Rubber Block 2PCS
8- Turntables 2PCS
9- Dell PC & 21.5" LCD Display,Mouse & Keyboard 1SET
10- HP Printer 1PC
11- Parking Aid Camera 1PC
